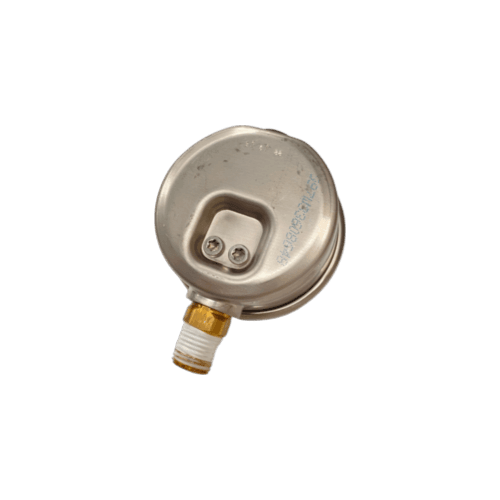

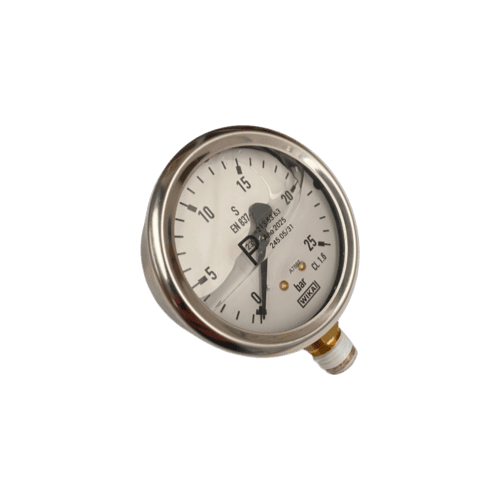

The WIKA 213.53.63 is a Bourdon-tube pressure gauge for pressure measurement in industrial, hydraulic and pneumatic installations.
The glycerin filling dampens vibration and pulsation, providing a steadier reading and reducing wear on the internal mechanism. Its stainless-steel case is resistant to industrial operating conditions.
It has a 1/4″ male NPT lower connection, a 0–25 bar range and accuracy class 1.6. The wetted parts are made of copper alloy.
WIKA 213.53.63 specifications:
- Type: Glycerin-filled Bourdon-tube pressure gauge.
- Nominal size and range: DN63, 0–25 bar.
- Connection: 1/4″ M.NPT, lower mount.
- Accuracy: Class 1.6.
- Construction: Stainless-steel case and copper-alloy wetted parts.
- Ingress protection: IP65.
- Brand: WIKA.
