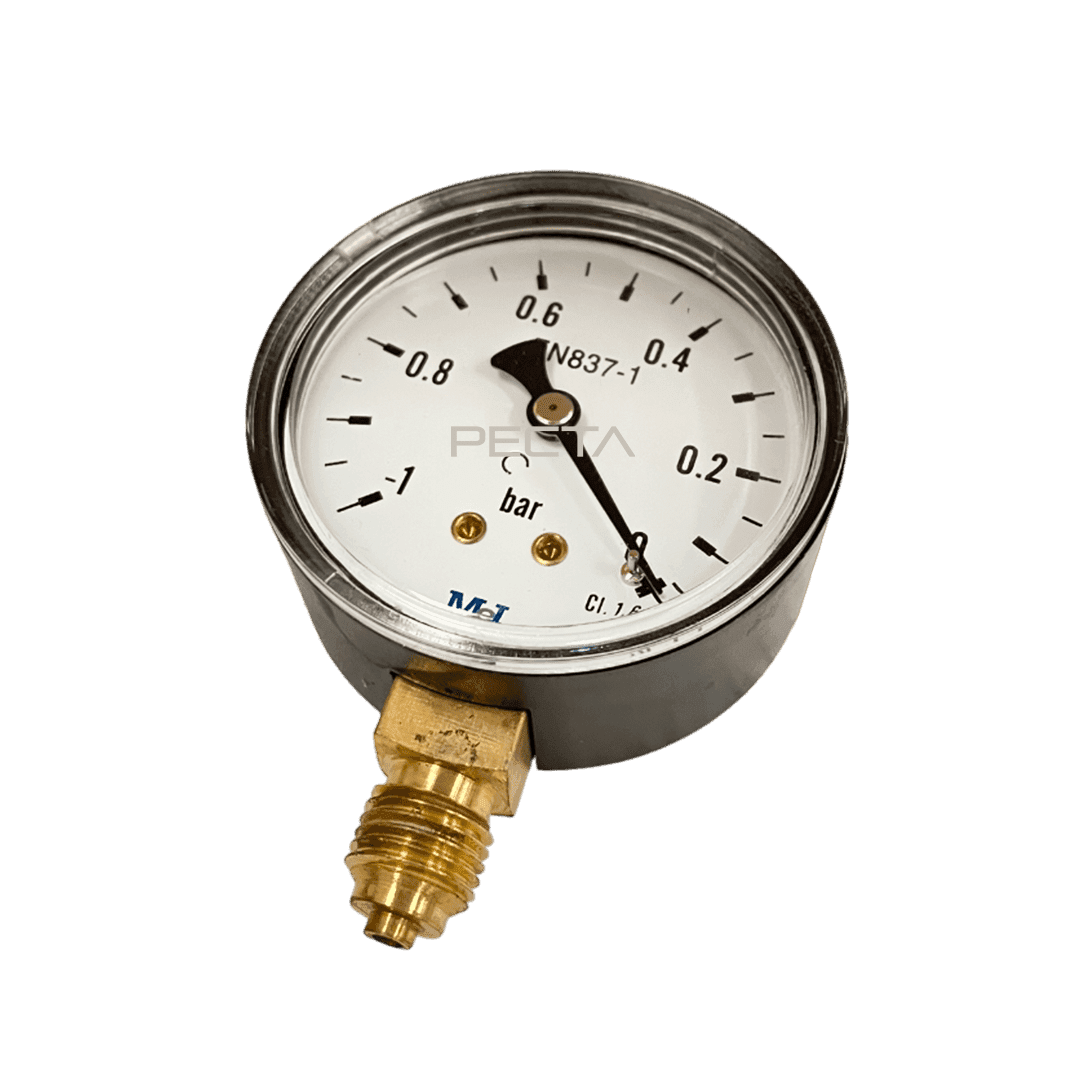

DN63 Dry Plastic-Case Vacuum Gauge, −1 to 0 bar

This DN63 analogue instrument uses a Bourdon-tube measuring element to indicate pressure over a -1 to 0 bar range.

Its dry construction contains no filling liquid and is suitable for installations without significant vibration or pressure pulsation.

Plastic construction provides a lightweight, economical enclosure for moderate service conditions.

Specifications:

• Type: Dry Bourdon-tube vacuum gauge.
• Dial size: DN63.
• Pressure range: -1 to 0 bar.
• Connection: 1/4″ M.BSP.
• Mounting: Bottom connection / vertical mounting.
• Case material: Plastic.
• Accuracy class: 1.6.
