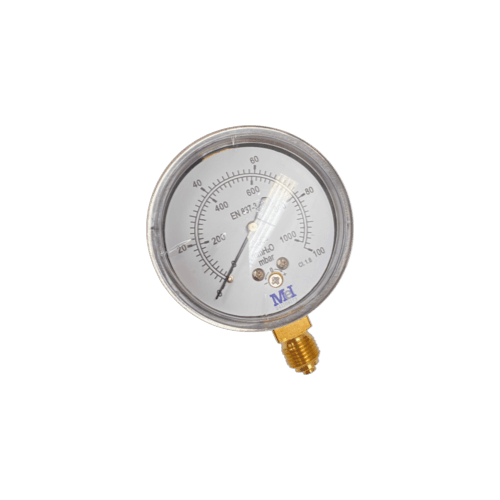

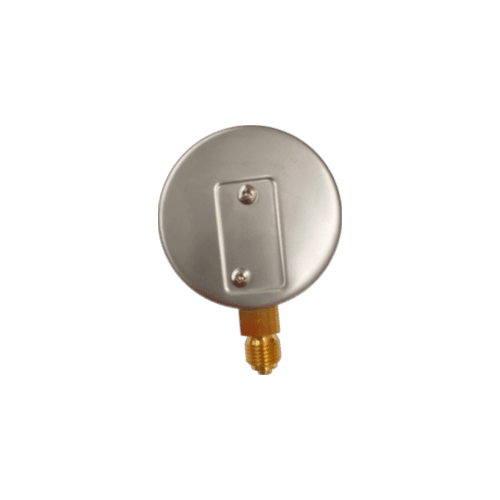

This DN63 analogue instrument uses a Bourdon-tube measuring element to indicate pressure over a 0–100 mbar range.
Its dry construction contains no filling liquid and is suitable for installations without significant vibration or pressure pulsation.
Stainless steel construction provides corrosion resistance for compatible industrial environments.
Specifications:
- Type: Dry Bourdon-tube pressure gauge.
- Dial size: DN63.
- Pressure range: 0–100 mbar.
- Connection: 1/4″ M.BSP.
- Mounting: Bottom connection / vertical mounting.
- Case material: Stainless steel.
- Accuracy class: 1.6.
