This DN63 analogue instrument uses a Bourdon-tube measuring element to indicate pressure over a 0–40 bar range.
The glycerine filling damps pointer movement caused by vibration and pressure pulsation, improving readability and helping protect the internal mechanism.
Stainless steel construction provides corrosion resistance for compatible industrial environments.
Specifications:
- Type: Glycerine-filled Bourdon-tube pressure gauge.
- Dial size: DN63.
- Pressure range: 0–40 bar.
- Connection: 1/4″ M.BSP.

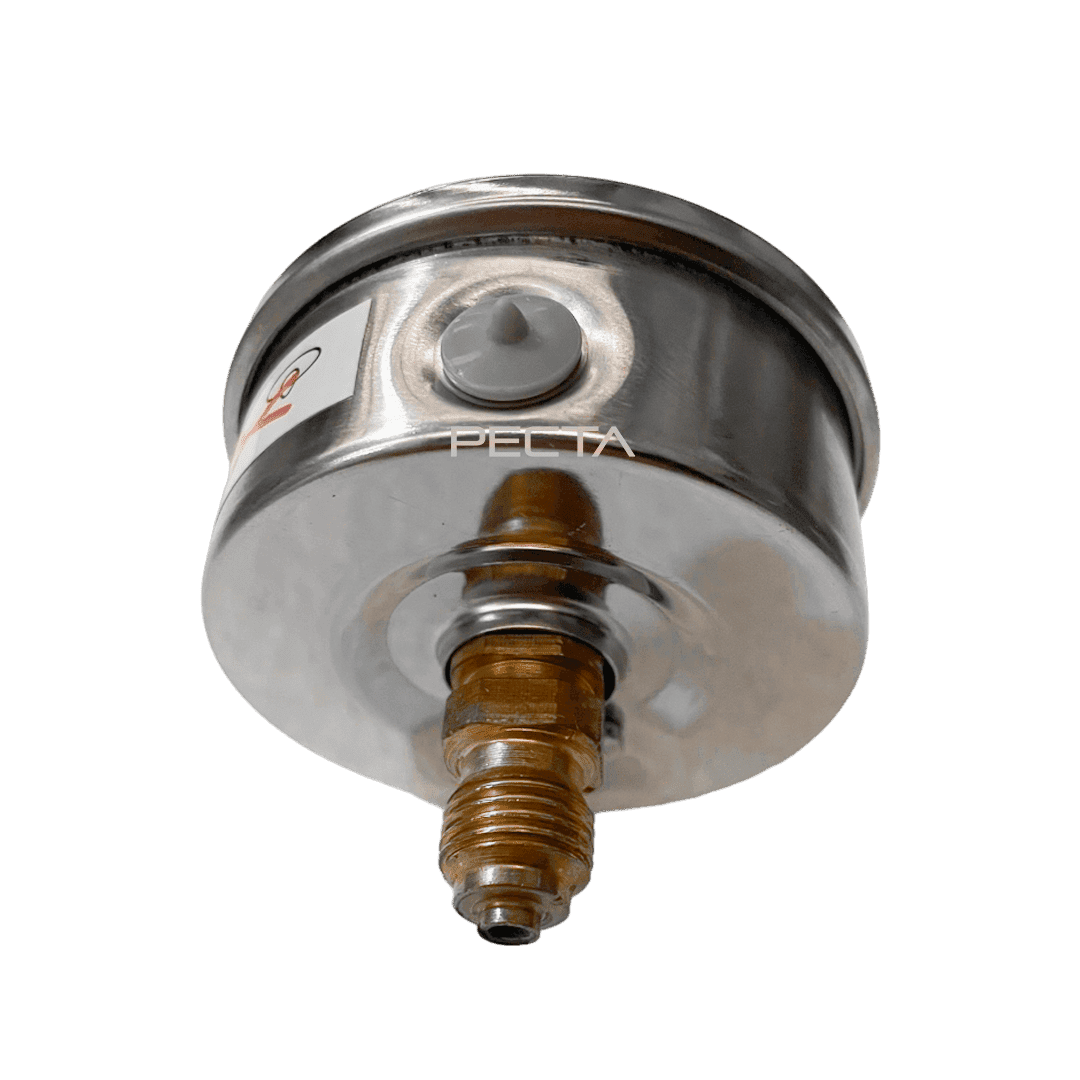

- Mounting: Rear connection / horizontal mounting.
- Case material: Stainless steel.
- Accuracy class: 1.6.
