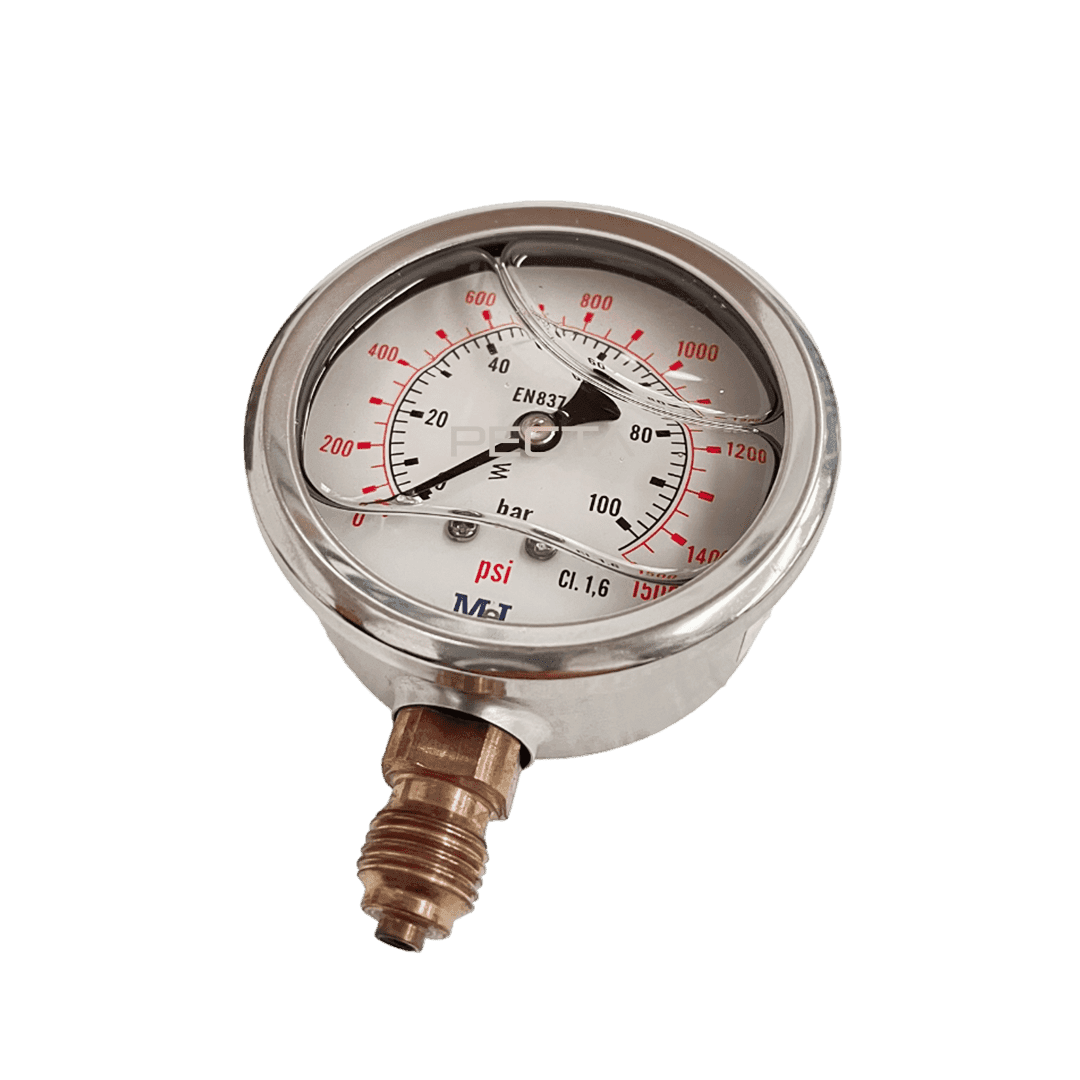

This DN63 analogue instrument uses a Bourdon-tube measuring element to indicate pressure over a 0–100 bar range.
The glycerine filling damps pointer movement caused by vibration and pressure pulsation, improving readability and helping protect the internal mechanism.
Stainless steel construction provides corrosion resistance for compatible industrial environments.
Specifications:
- Type: Glycerine-filled Bourdon-tube pressure gauge.
- Dial size: DN63.
- Pressure range: 0–100 bar.
- Connection: 1/4″ M.BSP.
- Mounting: Bottom connection / vertical mounting.
- Case material: Stainless steel.
- Accuracy class: 1.6.
