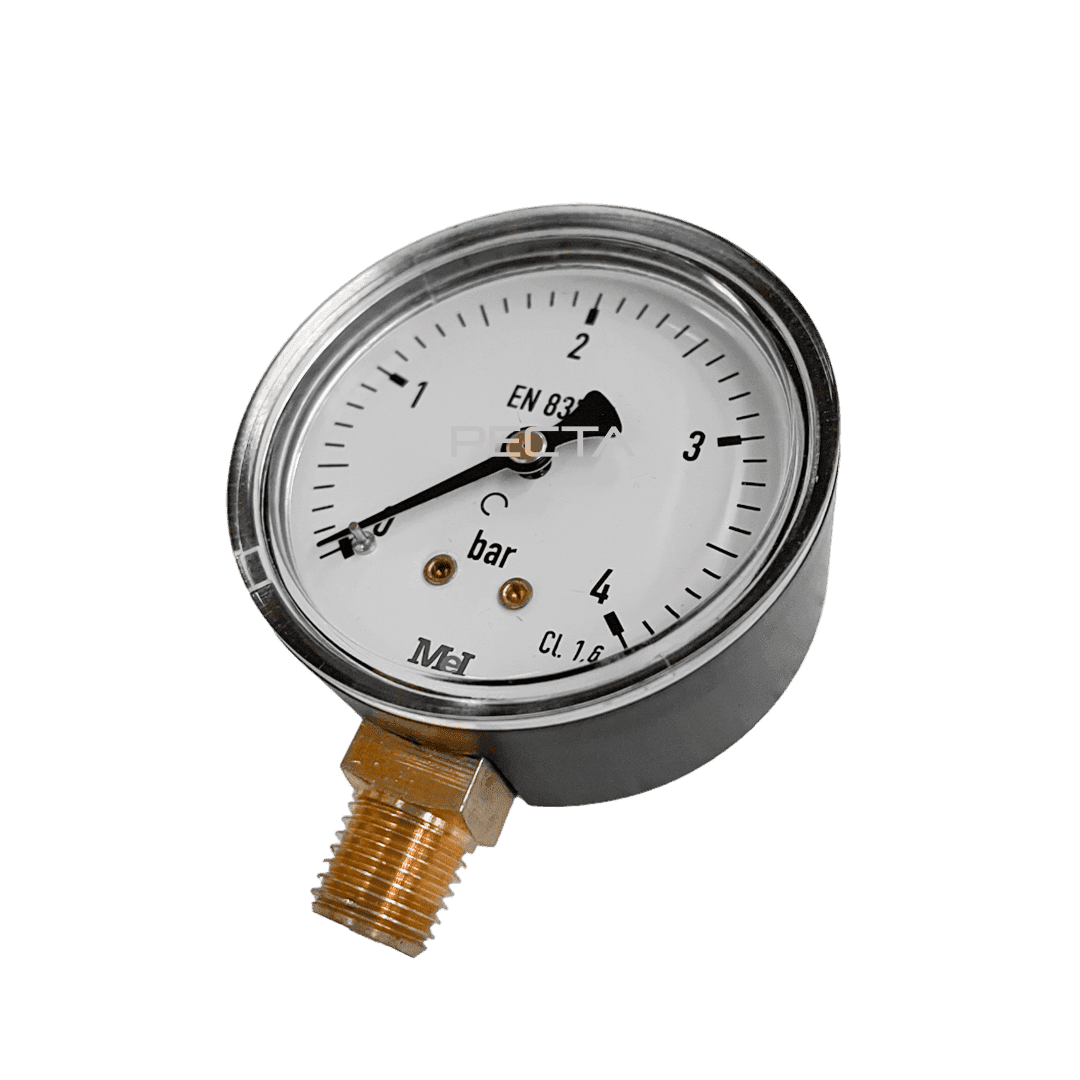

This DN63 analogue instrument uses a Bourdon-tube measuring element to indicate pressure over a 0–4 bar range.
Its dry construction contains no filling liquid and is suitable for installations without significant vibration or pressure pulsation.
Plastic construction provides a lightweight, economical enclosure for moderate service conditions.
Specifications:
- Type: Dry Bourdon-tube pressure gauge.
- Dial size: DN63.
- Pressure range: 0–4 bar.
- Connection: 1/4″ M.NPT.
- Mounting: Bottom connection / vertical mounting.

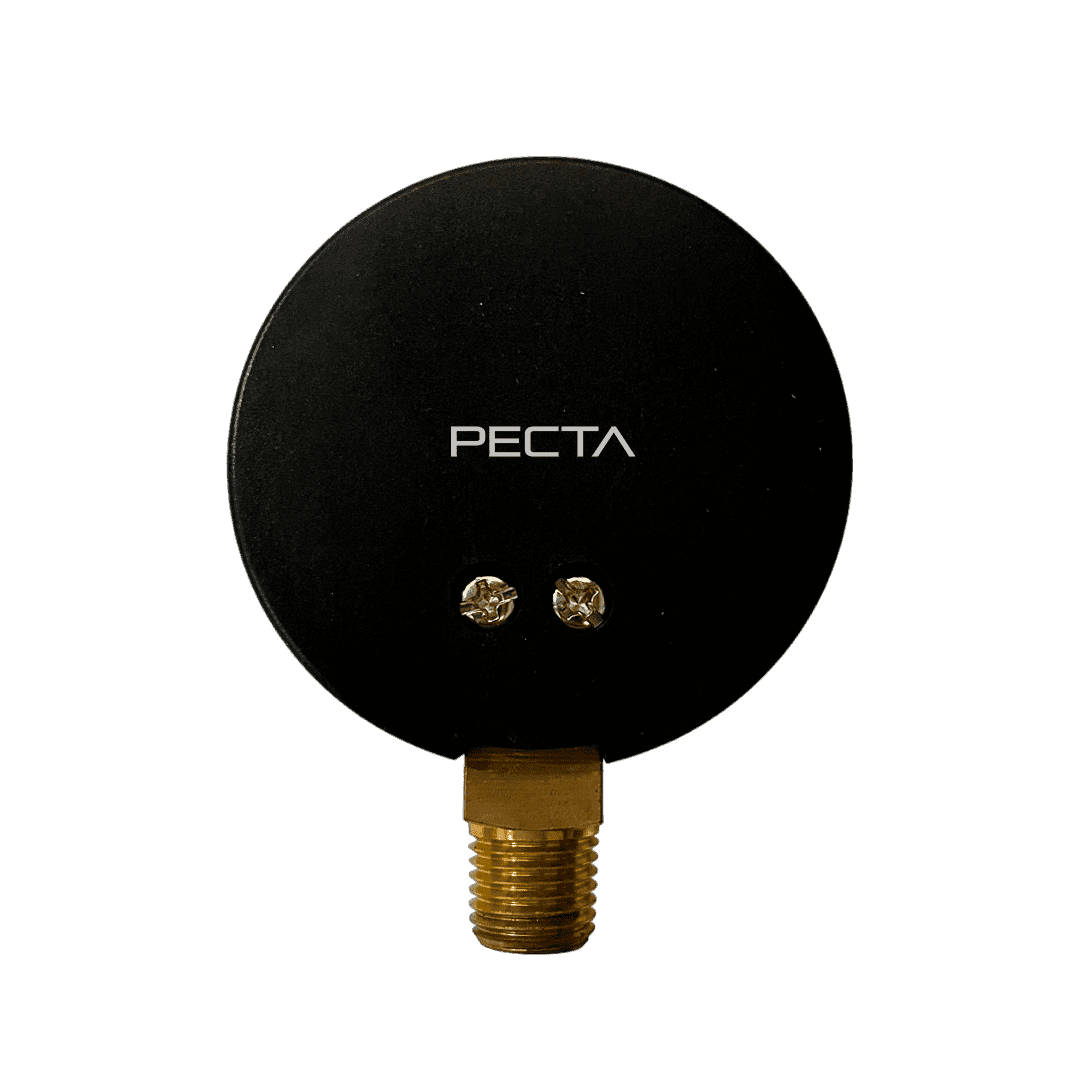

- Case material: Plastic.
- Accuracy class: 1.6.
