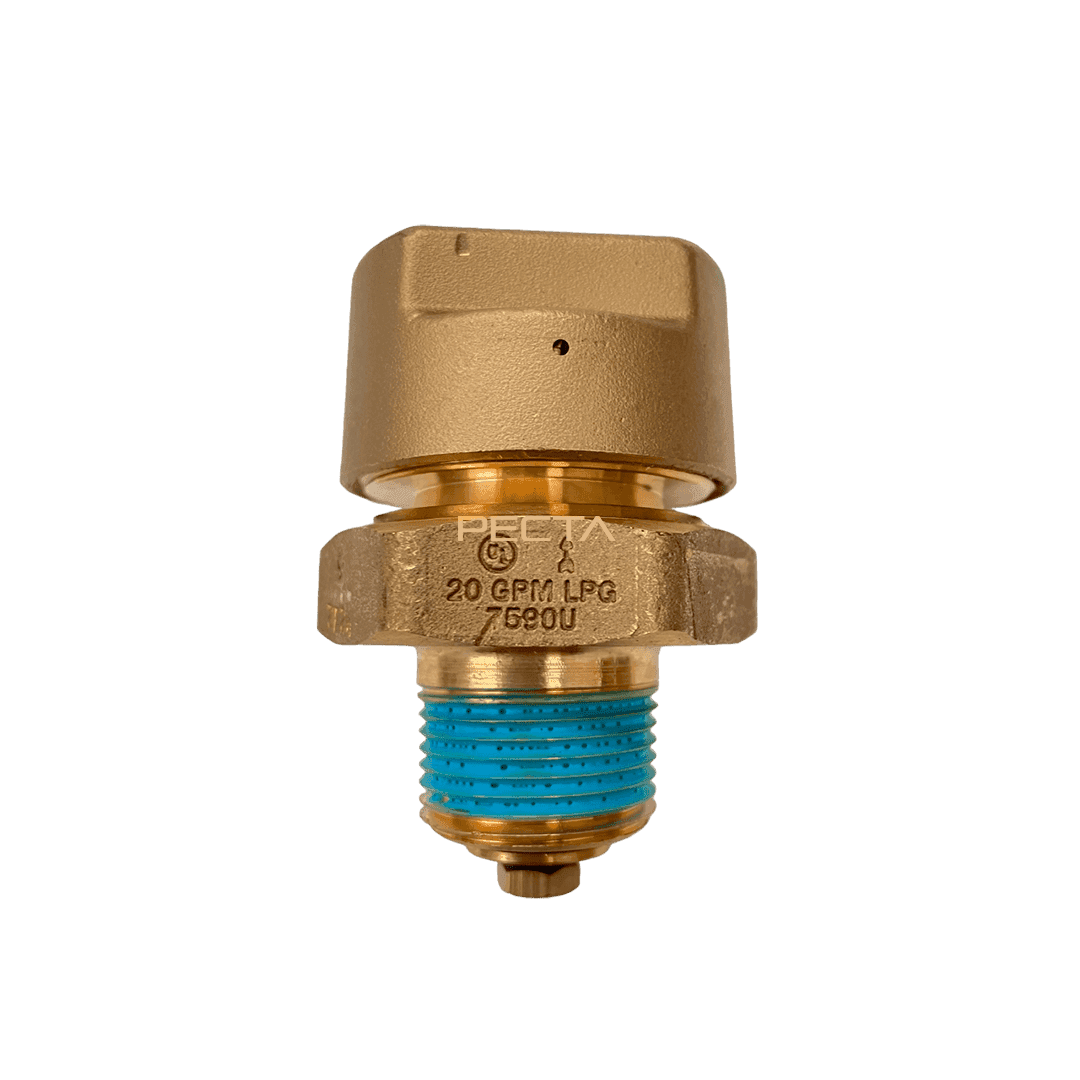

The RegO 7590UT is a Check-Lok valve designed for installation in flanged tank connections with internal threads at the bottom of the vessel.It is especially suitable for filling, liquid withdrawal or vapour equalisation systems in LPG applications and other liquefied gases.
Its design ensures high flow capacity with minimal pressure drop, helping to minimise cavitation in the pump inlet line, improving efficiency and extending the service life of system components.
Features RegO 7590UT:
| Feature | Description |
|---|---|
| Model | RegO 7590UT |
| Valve type | Check-Lok valve (non-return) |
| Application | Filling, liquid withdrawal or vapour equalisation |
| Inlet connection | 3/4″ M.NPT |
| Outlet connection | 1.5/8″ UNF |
| Mounting | On flanged connection with internal thread (tank base) |
| Flow capacity | High, with low pressure loss |
| Function | Prevent fluid backflow and reduce cavitation |
| Construction material | Brass / stainless steel (depending on model) |
| Manufacturer | RegO Products (USA) |
| Origin | United States of America |
