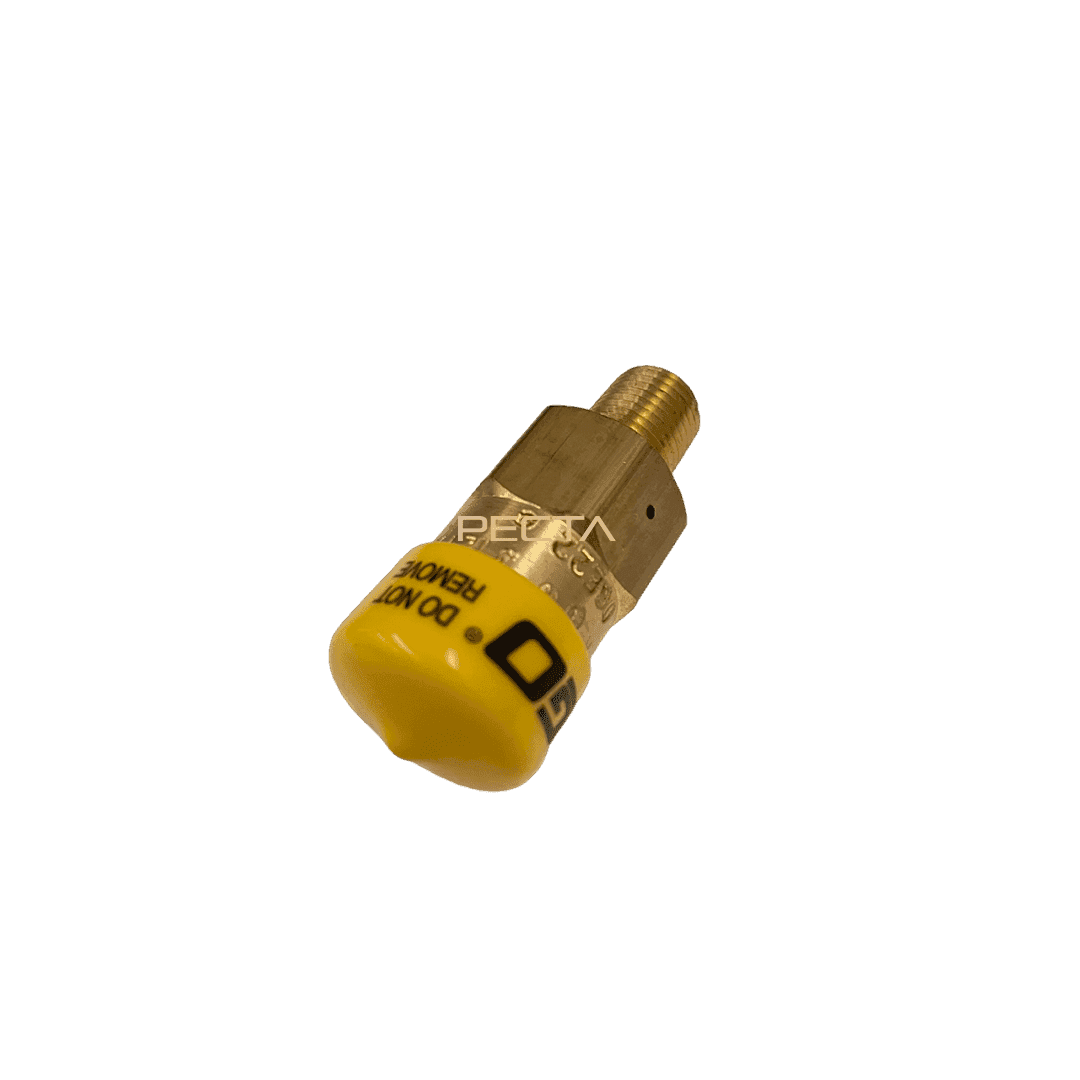

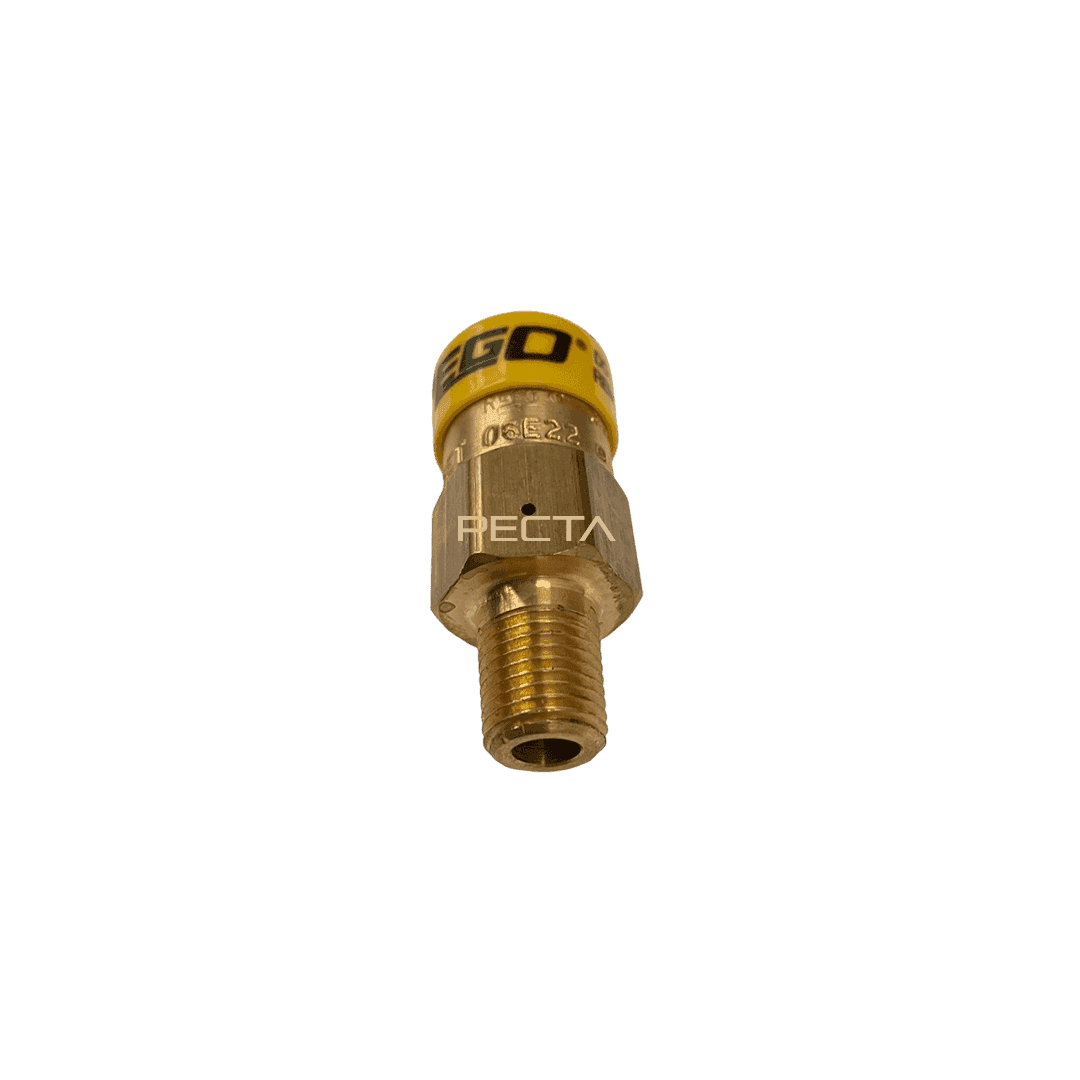

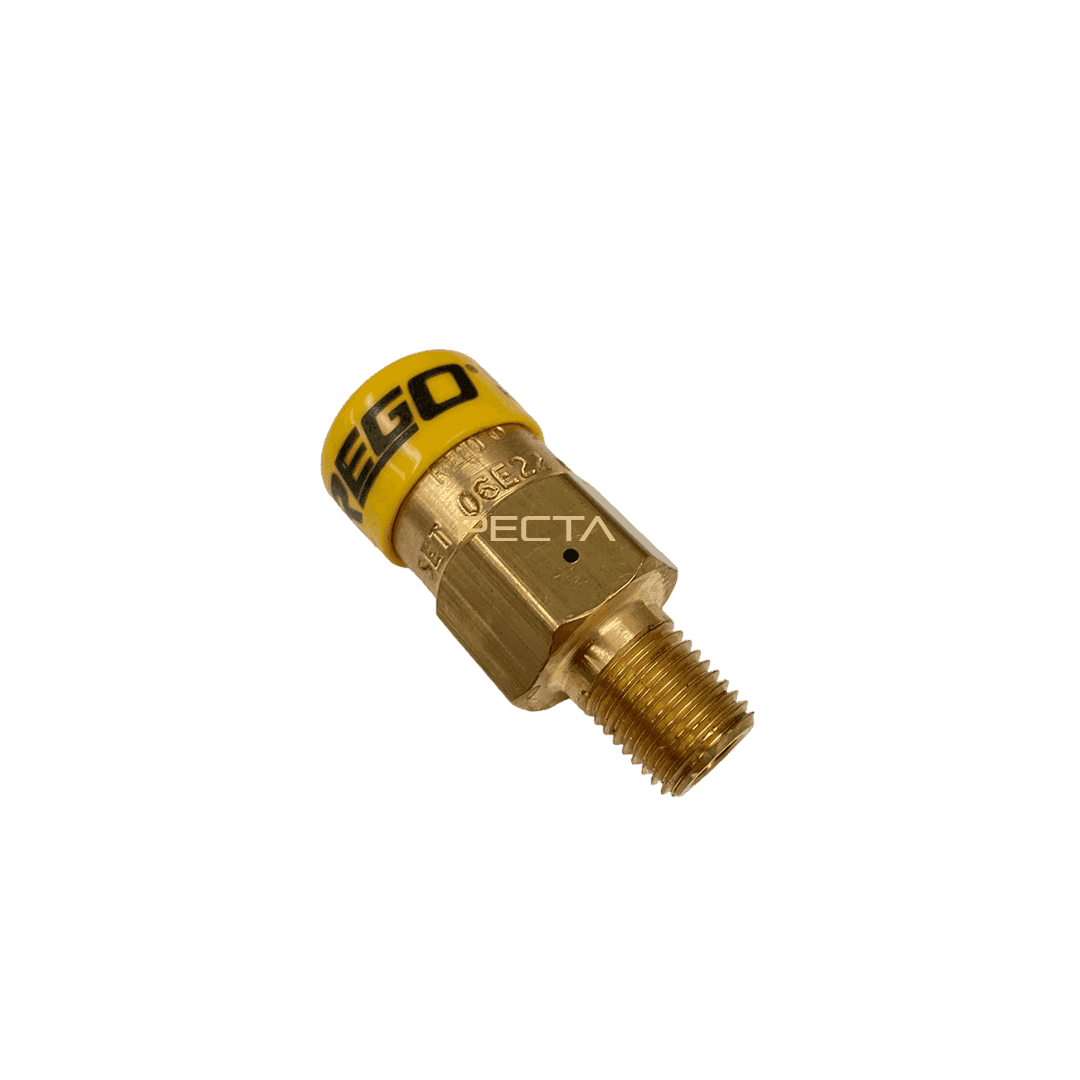

RegO 3127 – External Pressure Relief Valve – 1/4″ M.NPT

20,45 €

The RegO 3127 External Pressure Relief Valve was designed to provide maximum protection in liquefied petroleum gas (LPG) systems and other industrial gases, ideal for smaller systems or where installation space is limited, used in pressurized systems to prevent excess pressure, maintaining safe and efficient operation.

- +
SKU: 01VS0010 Categories: , Tags: , Brand:RegO
Selecione uma opção para consultar a data de entrega prevista.

Recommended Combinations

Calibration

Pressure Test and Certificate

Choose only one of the available complements.
Choose the main product model. The recommended combination will update automatically.
Main Product Included
RegO 3127 - External Pressure Relief Valve - 1/4" M.NPT RegO 3127 - External Pressure Relief Valve - 1/4" M.NPT Selected model 20,45 €
Change model
Calibration
LPG Safety Valve Testing < 1 1/4" LPG Safety Valve Testing < 1 1/4" 36,00 €
Calibration
LPG Safety Valve Testing with Adjustment LPG Safety Valve Testing with Adjustment 113,60 €

Available in various versions — RegO 3127, 3127G, 3127H and 3127J — easily adapts to different operating conditions and applications, ensuring consistent performance and long durability.

Installation is simple, via 1/4″ M.NPT thread, ensuring secure sealing and complete leak-tightness. Ideal for use in gas tanks, distribution systems, reservoirs and other industrial applications where safety is essential.

When pressure reaches the limit, the valve opens automatically to relieve excess pressure.

How it works:

Its “Pop-Action” design allows for a fast and controlled response, minimizing gas loss during relief. After discharge, the valve reseats automatically, ensuring a firm and tight seal.The resilient sealing disc ensures bubble-tight sealing, preventing leaks and ensuring maximum system safety.

RegO 3127 Technical Specifications
Feature Description
Models 3127 / 3127G / 3127H / 3127J
Valve type Supplemental external pressure relief valve
Application Small ASME tanks (above/underground), DOT cylinders and LPG systems
Function Automatic overpressure relief (“Pop-Action”)
Automatic reseating Yes, with hermetic seal after discharge
Body material High-strength brass
Spring Stainless steel
Sealing disc Resilient rubber
Connection 1/4″ M.NPT (Male thread)
Recommended mounting Vertical
Manufacturer RegO Products (USA)
Origin United States of America
Modelo

RegO 3127, RegO 3127G, RegO 3127H, RegO 3127J

Conexão

1/4" M.NPT

Pressão de Alívio

14 bar, 17,2 bar, 18,9 bar, 24 bar

Tipo de Montagem

External
