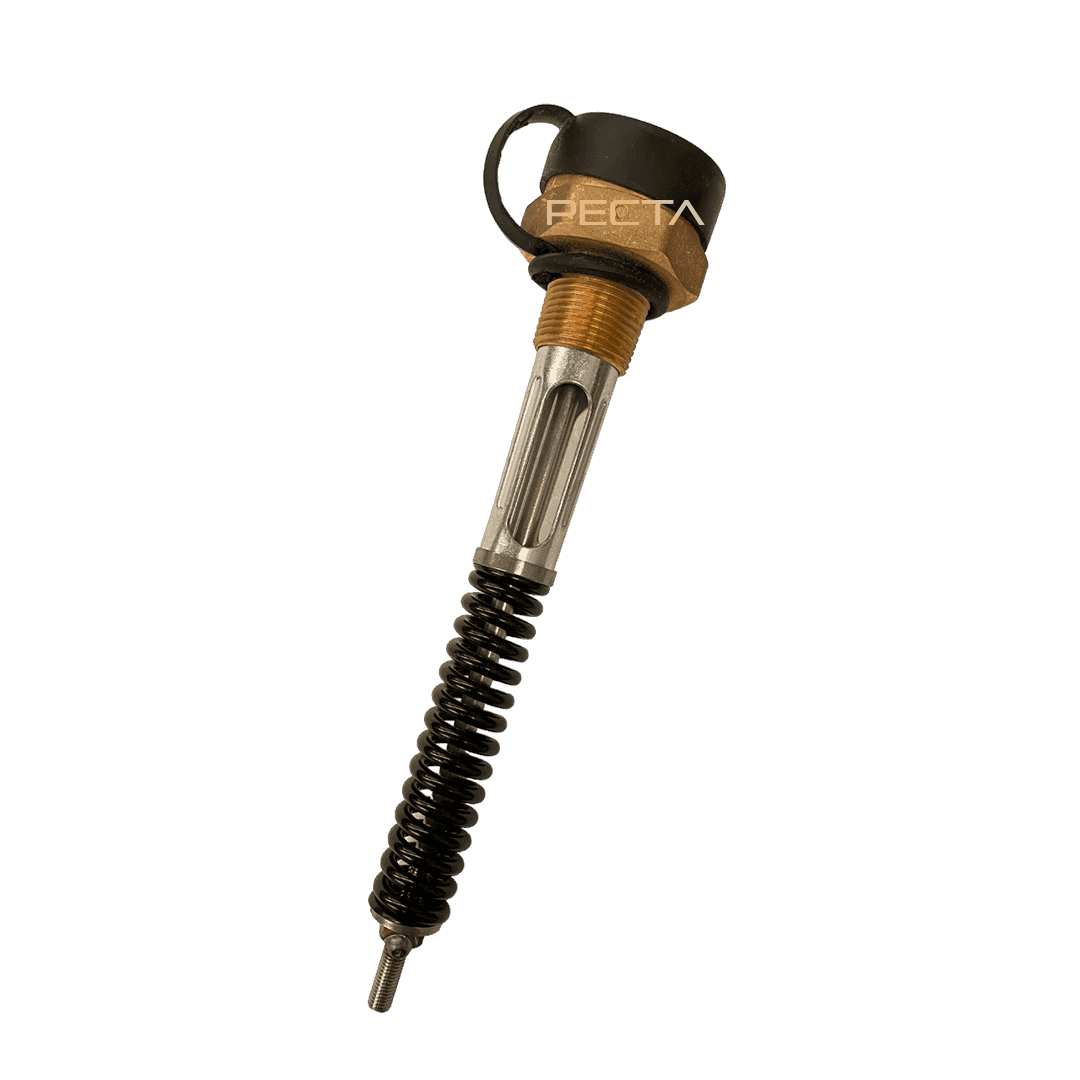

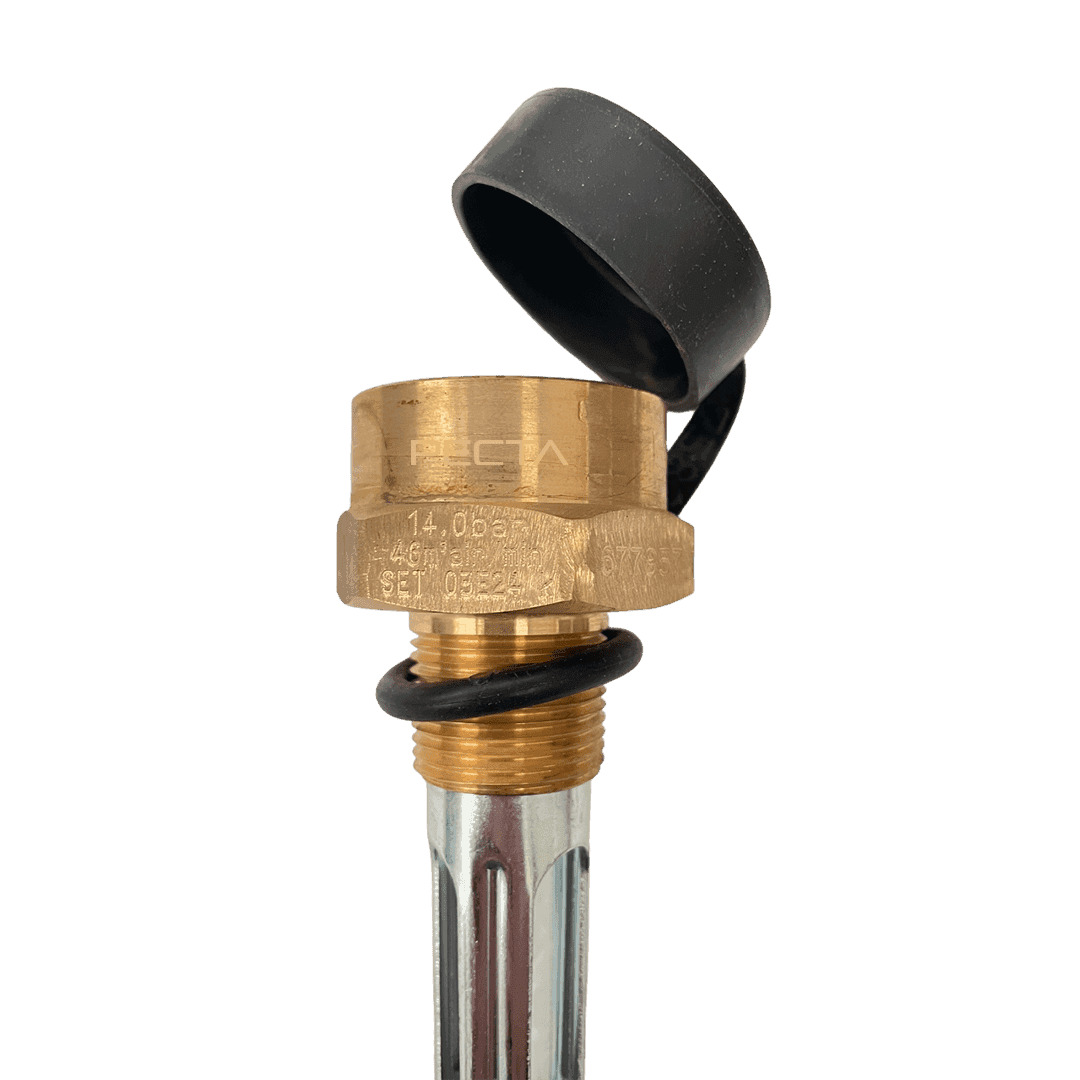

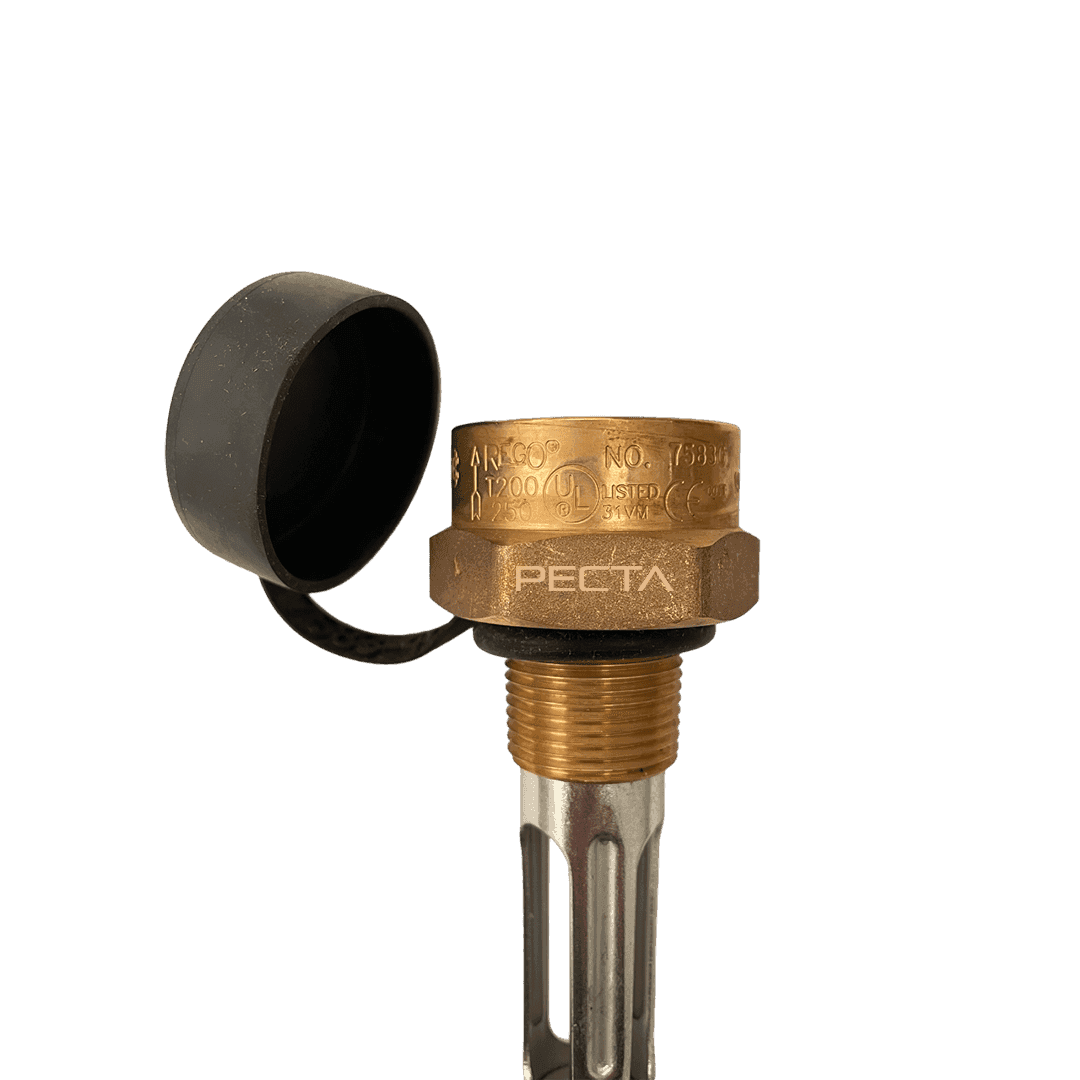

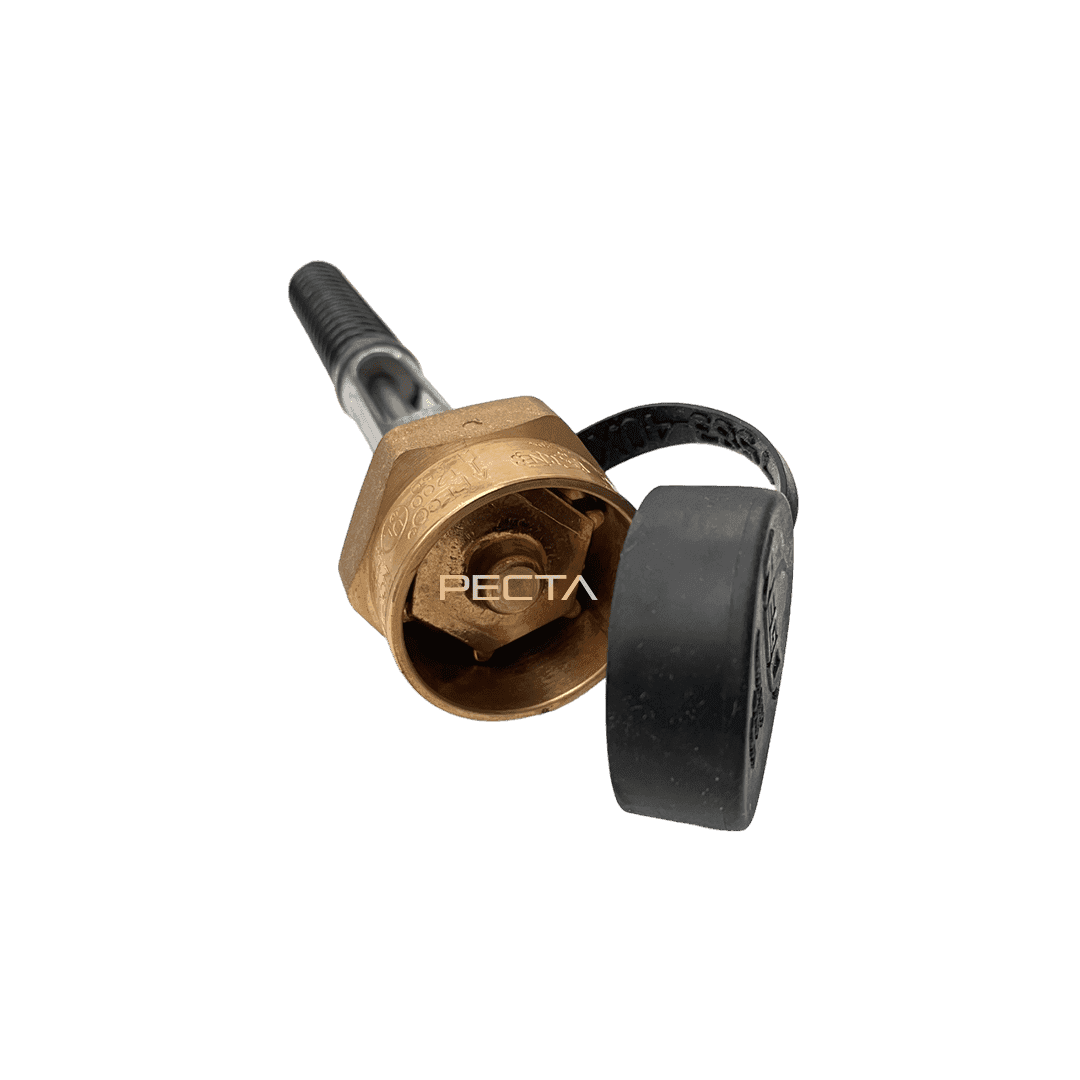

RegO 7583 – 3/4″ M.NPT Internal Pressure Relief Valve

Price range: 42,90 € through 43,65 €

Designed for pressurised systems, it operates automatically to prevent the system’s internal pressure from exceeding the preset limit. The RegO 7583 valve is essential to ensure safety in gas systems, preventing overpressure and potential accidents.

- +
SKU: 01VS0006 Categories: , Tags: , Brand:RegO
Selecione uma opção para consultar a data de entrega prevista.

Recommended Combinations

Calibration

Pressure Test and Certificate

Choose only one of the available complements.
Choose the main product model. The recommended combination will update automatically.
Main Product Included
RegO 7583 - 3/4" M.NPT Internal Pressure Relief Valve RegO 7583 - 3/4" M.NPT Internal Pressure Relief Valve Selected model Price range: 42,90 € through 43,65 €
Change model
Calibration
LPG Safety Valve Testing < 1 1/4" LPG Safety Valve Testing < 1 1/4" 36,00 €
Calibration
LPG Safety Valve Testing with Adjustment LPG Safety Valve Testing with Adjustment 113,60 €

This pressure relief valve is an internally mounted device; the RegO 7583 model is specifically designed to open and relieve excess pressure, restoring pressure to safe levels. It is widely used in storage and transport systems for liquefied and pressurised gases.

Features
Ref. Pressure Opening Connection Dimension Air Flow Capacity
7583 14 bar 3/4″ M.NPT 208 mm 15,551
7583G 17.2 bar 3/4″ M.NPT 208 mm
How the RegO 7583 Valve works:

The internal pressure relief valve operates via a calibrated spring mechanism. When system pressure exceeds 17.2 bar, the pressure force overcomes the spring resistance, causing the valve to open and release the pressurised fluid (usually gas) to the atmosphere or to a safe area. Once the pressure drops below this limit, the valve closes automatically, restoring normal system operation.

Advantages:
  • Overpressure protection: Ensures the system does not exceed the preset pressure, preventing equipment damage and ensuring operator safety.
  • Automatic shut-off: The valve closes automatically after relieving pressure, restoring normal operating conditions without manual intervention.
  • High durability: Built with materials resistant to corrosion and high pressures, this valve offers long service life and reliability.
  • Reliable safety: Ideal for systems that require protection against pressure fluctuations, reducing the risk of system failures.

A vital component in systems operating with pressurised gas, providing automatic overpressure protection, ensuring system and operator safety, and extending the service life of the equipment involved.

Ref.

7583, 7583G

Conexão

3/4" M.NPT

Pressão de Alívio

14 bar, 17,2 bar

Tipo de Montagem

Internal
