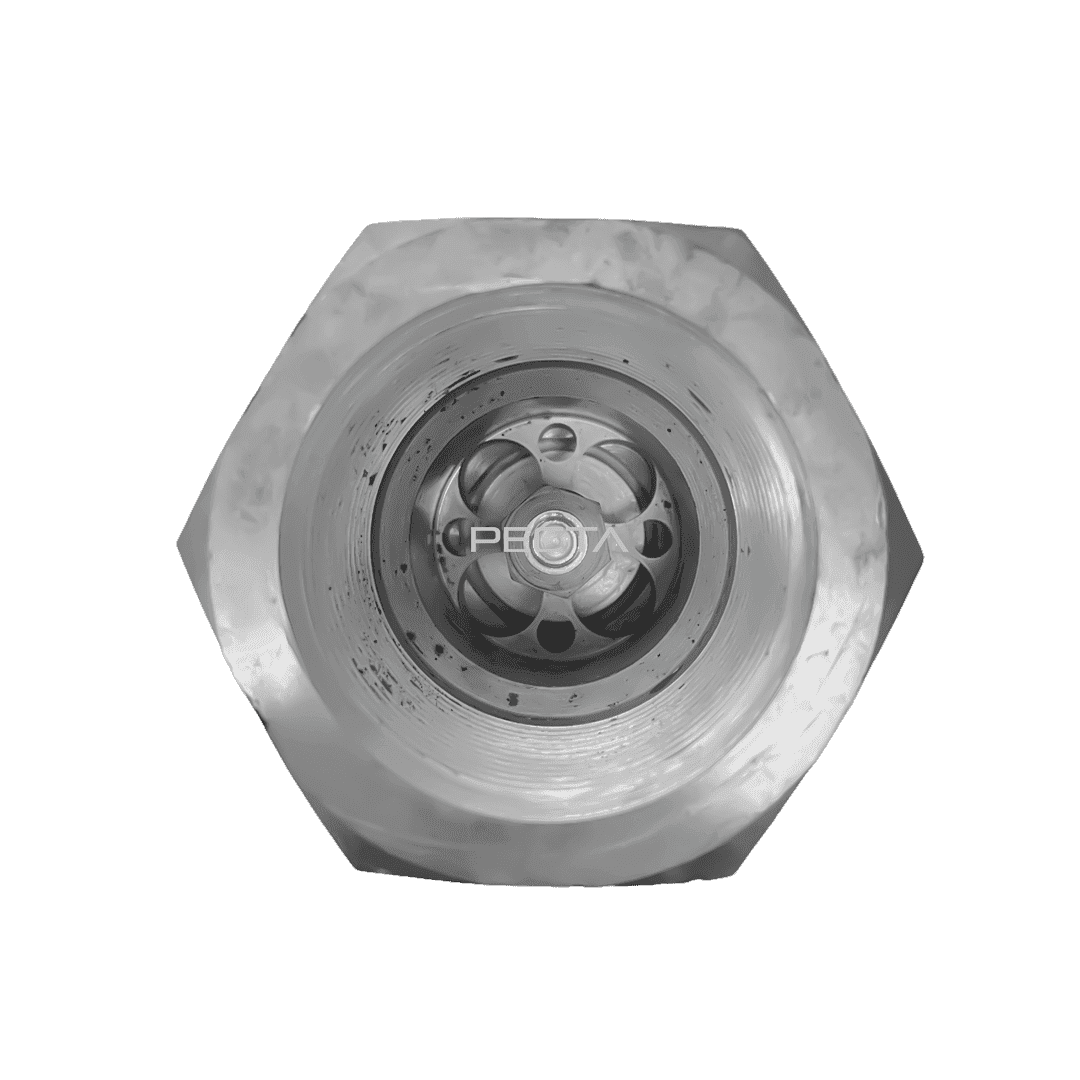

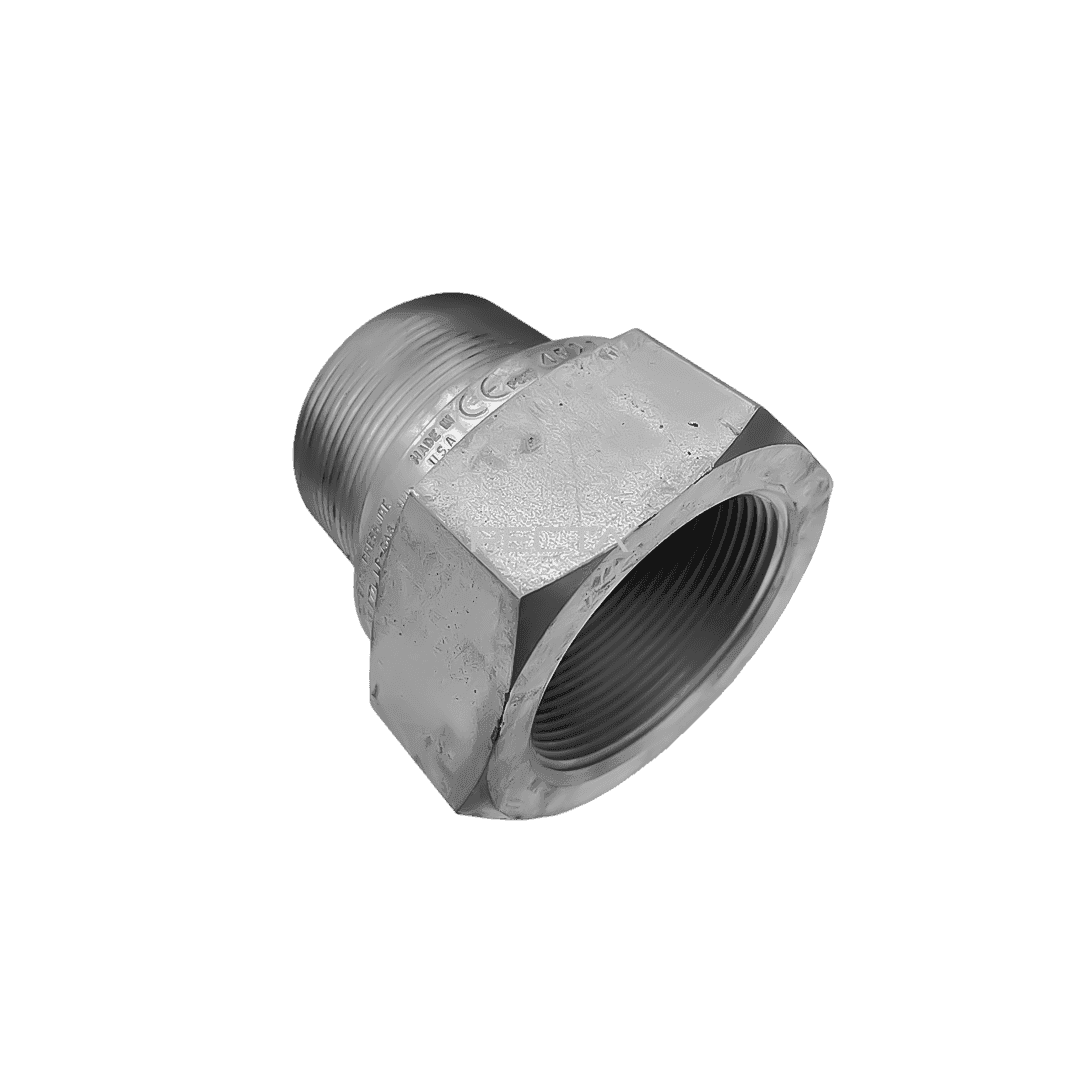

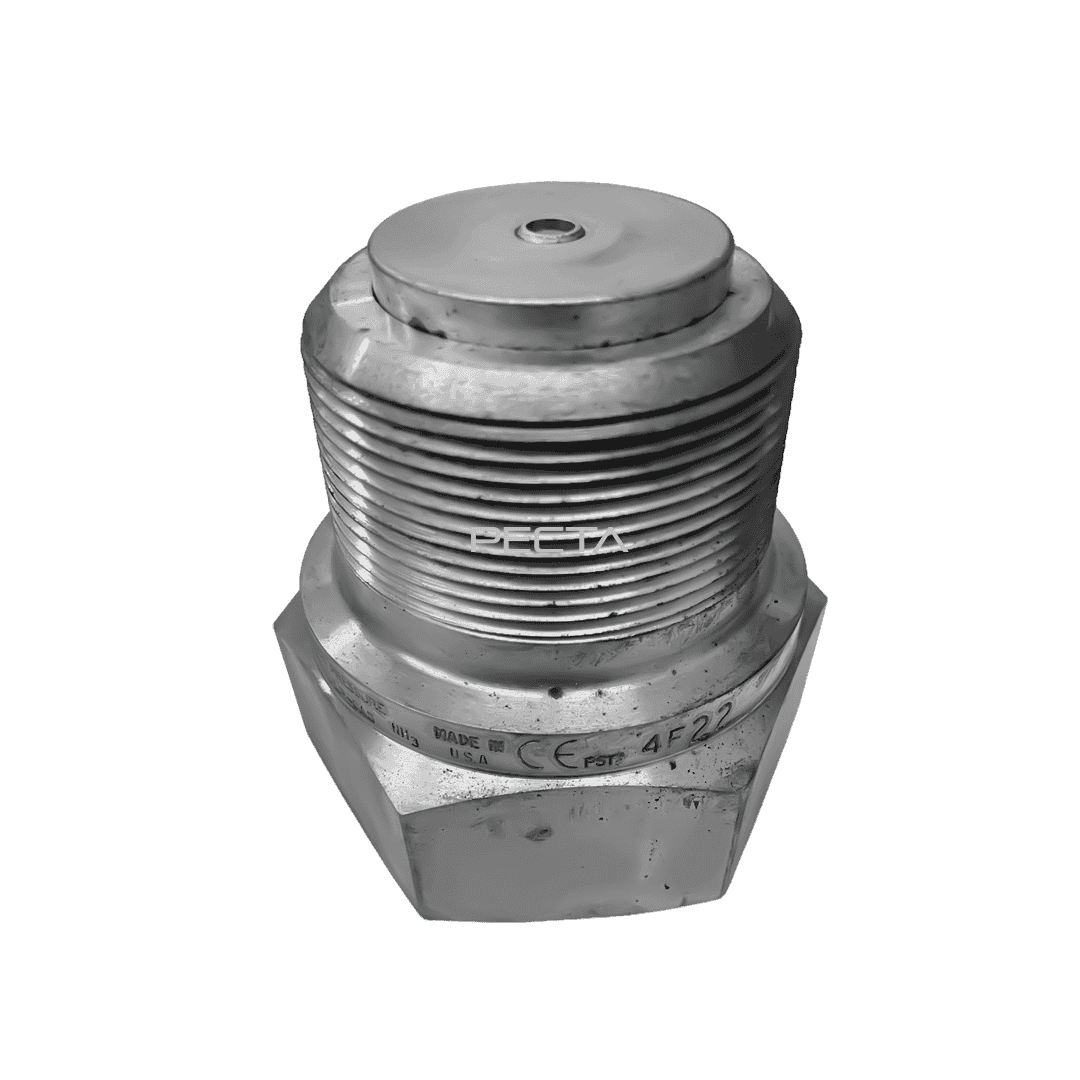

The RegO A3186 is a back pressure check valve, also known as a non-return valve. Its primary function is to prevent gas backflow, which can cause system failures and compromise safety.
Features
| Ref. | Inlet/Outlet Connection | Dimension | Liquid Capacity at 1.7 bar | Liquid Capacity at 3.7 bar |
|---|---|---|---|---|
| A3186 | 2″ NPT | 61.9 mm | 1044 l/m | 1480 l/m |
How it works:
The back pressure check valve allows gas to flow freely in one direction while blocking backflow in the opposite direction. When gas attempts to flow back through the system, a disc or piston inside the valve closes automatically due to back pressure, preventing reverse flow. This mechanism is activated by the pressure differential between the two ends of the valve.
RegO A3186 Advantages:
- Reverse flow protection: Prevents gas or liquid backflow, protecting the system and ensuring the safety of equipment and operators.
- Easy installation: Allows quick and easy installation in standard systems.
- Automatic operation: The valve operates automatically, without the need for manual intervention, blocking reverse flow when necessary.
- High durability: Manufactured with high-quality materials, the valve is resistant to corrosion and wear, offering a long service life in demanding conditions.
- Improved efficiency: By preventing backflow, the valve helps maintain system efficiency and prevents potential failures or gas losses.
