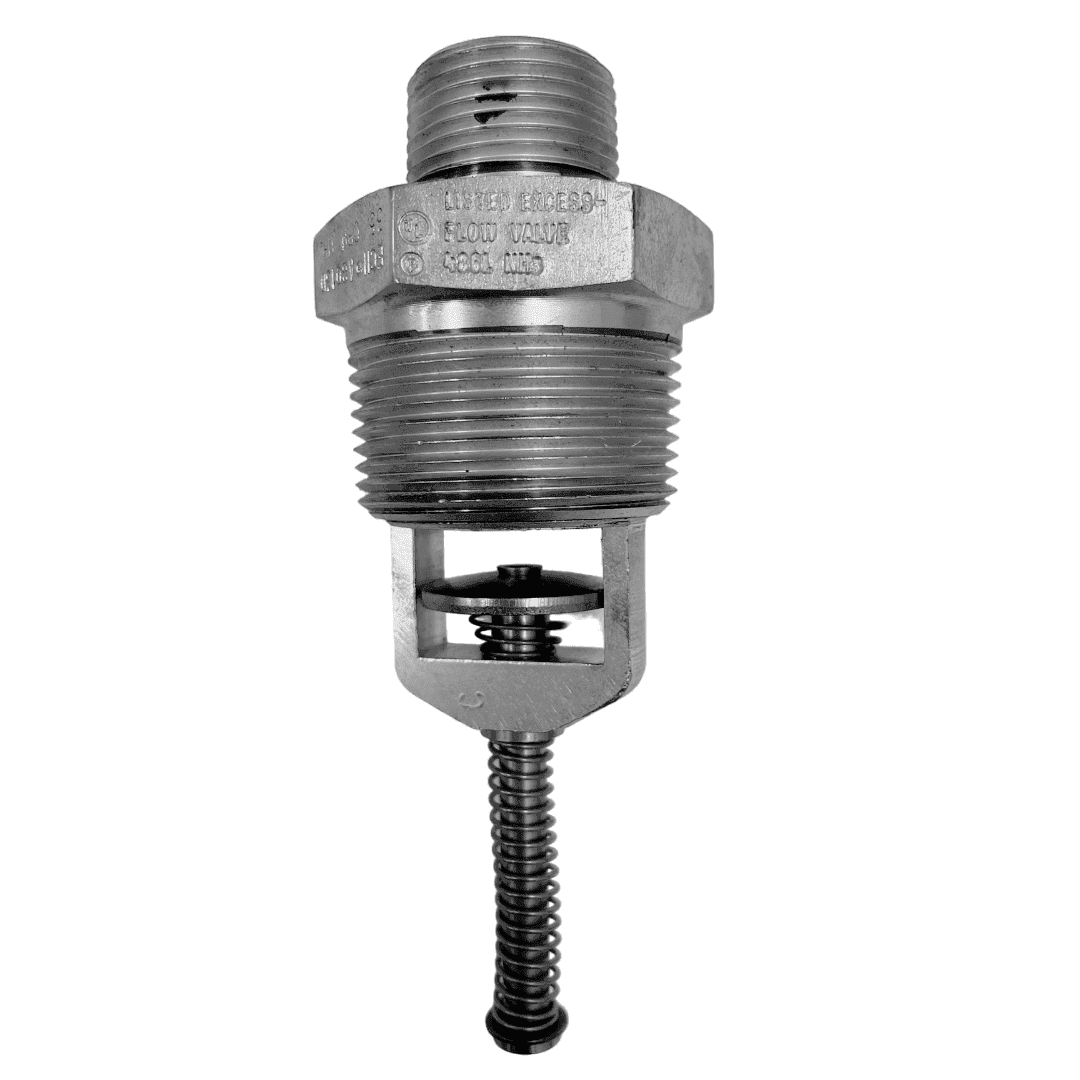

These valves are designed for bottom mounting in consumer storage tanks for liquid service. They may also be top mounted for vapor service. These valves are designed especially for use with RegO globe and angle valves.
RegO A8013D Features:
- Connections: 1.1/4″ M.NPT (inlet) × 3/4″ NPT (outlet).
- Maximum flow rate: 147 LPM.
- A8013D Series features a 2-position floating valve disc for faster, more efficient container filling.
- Stainless steel spring provides consistent closing flow and long service life.
- Generous flow channels provide low pressure drop.
Materials
- Body and guide: Cadmium-plated steel.
- Disc, shaft, spring and insert: Stainless steel.
