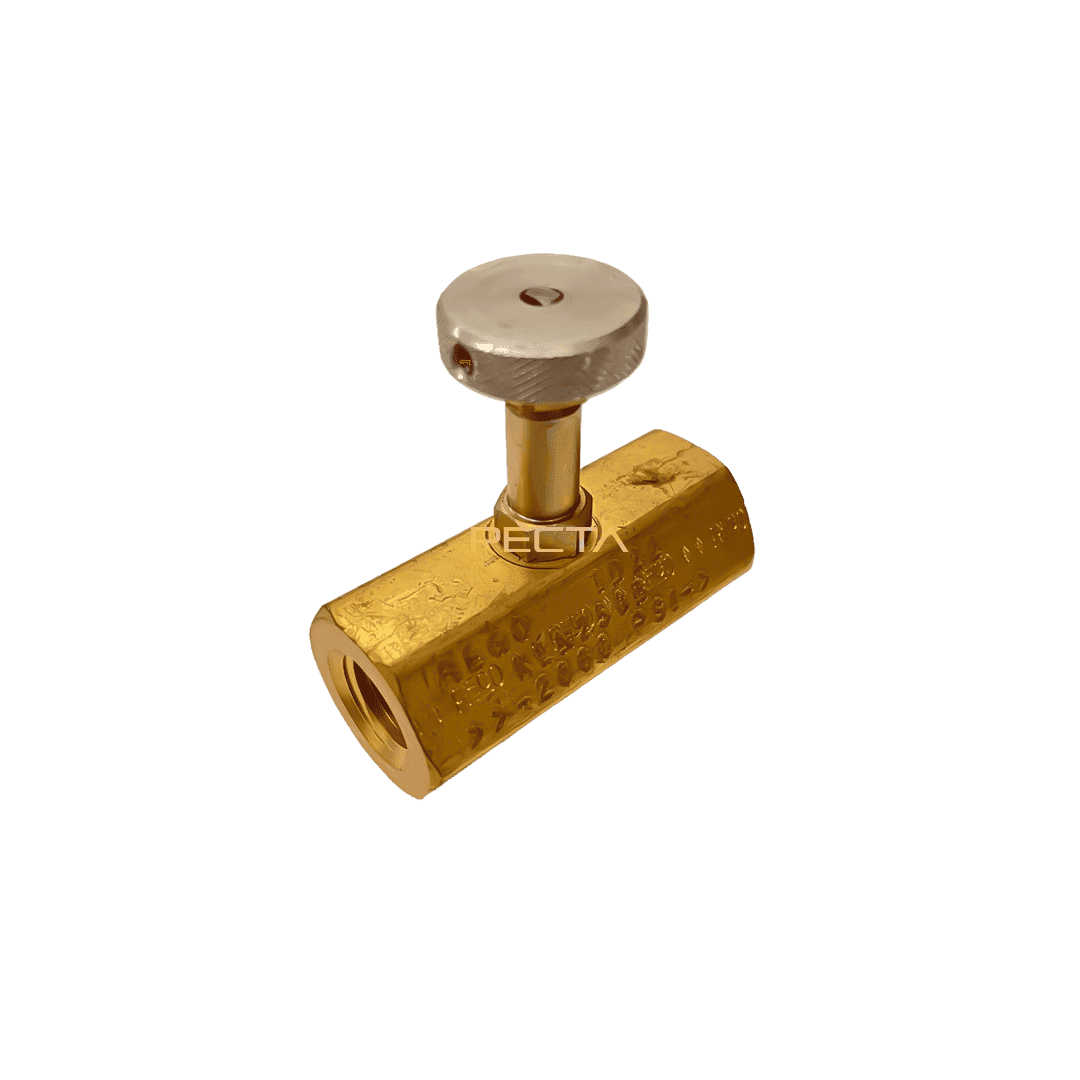

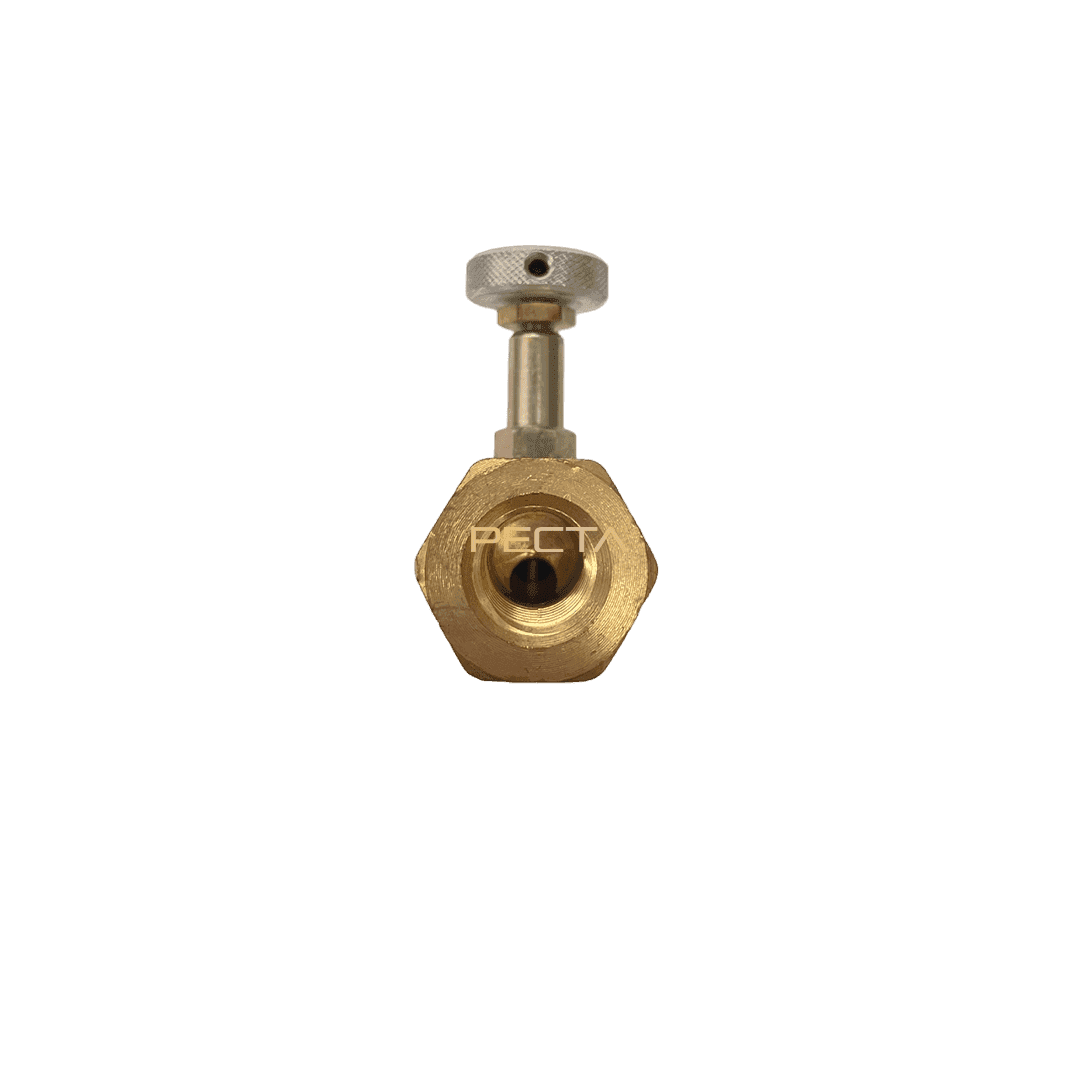

The RegO® KLN250B needle valve, from the KLN series, is a high-precision flow control valve designed for applications with air and hydraulic fluids. It has an F.NPT connection, a nominal diameter of 1/4″ and is rated for a maximum pressure of 2000 psig (138 bar), ensuring accurate and reliable flow control.
Its robust, all-metal design ensures high durability even under demanding operating conditions.
RegO KLN250B Features:
- Connection: 1/4″ F.NPT.
- Maximum working pressure: 138 bar (2000 psig)
- Operating temperature range: -20 °F to 212 °F (-29 °C to +100 °C)
- Compatible fluids: Air, hydraulic fluids
Materials
- Body: Brass
- Internal components (trim): Brass / Stainless steel
- Sealing elements: FKM / PTFE
Features
- Long, tapered and precision machined, with fine thread for precise flow control
- Lock nut included for securing the adjustment position
- All-metal construction, no plastic components
- High mechanical strength and long service life
- Steel valves with zinc coating and gold chromate treatment for double corrosion protection
