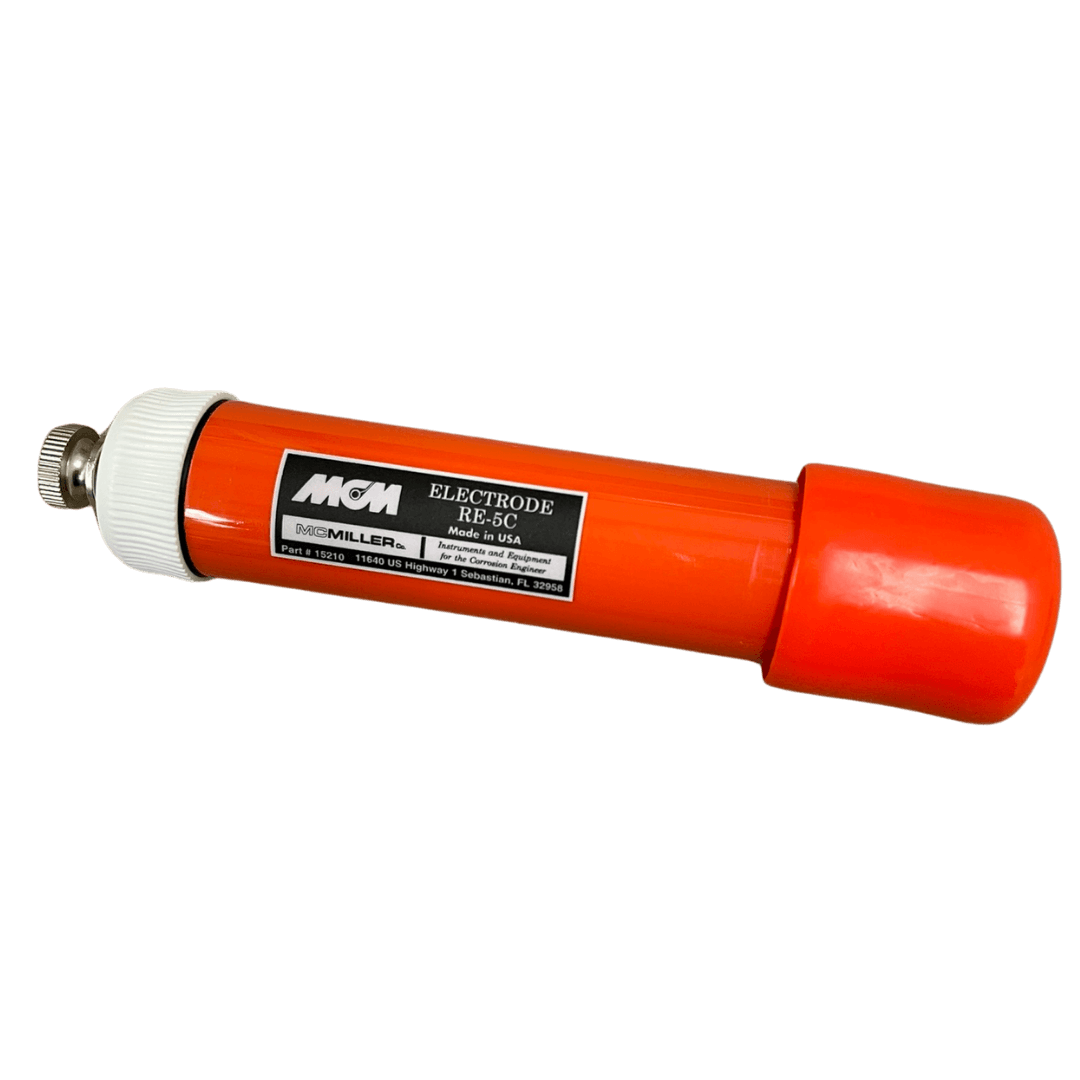

The M.C. Miller RE-5C portable reference electrode is used to verify cathodic-protection potentials on buried structures.

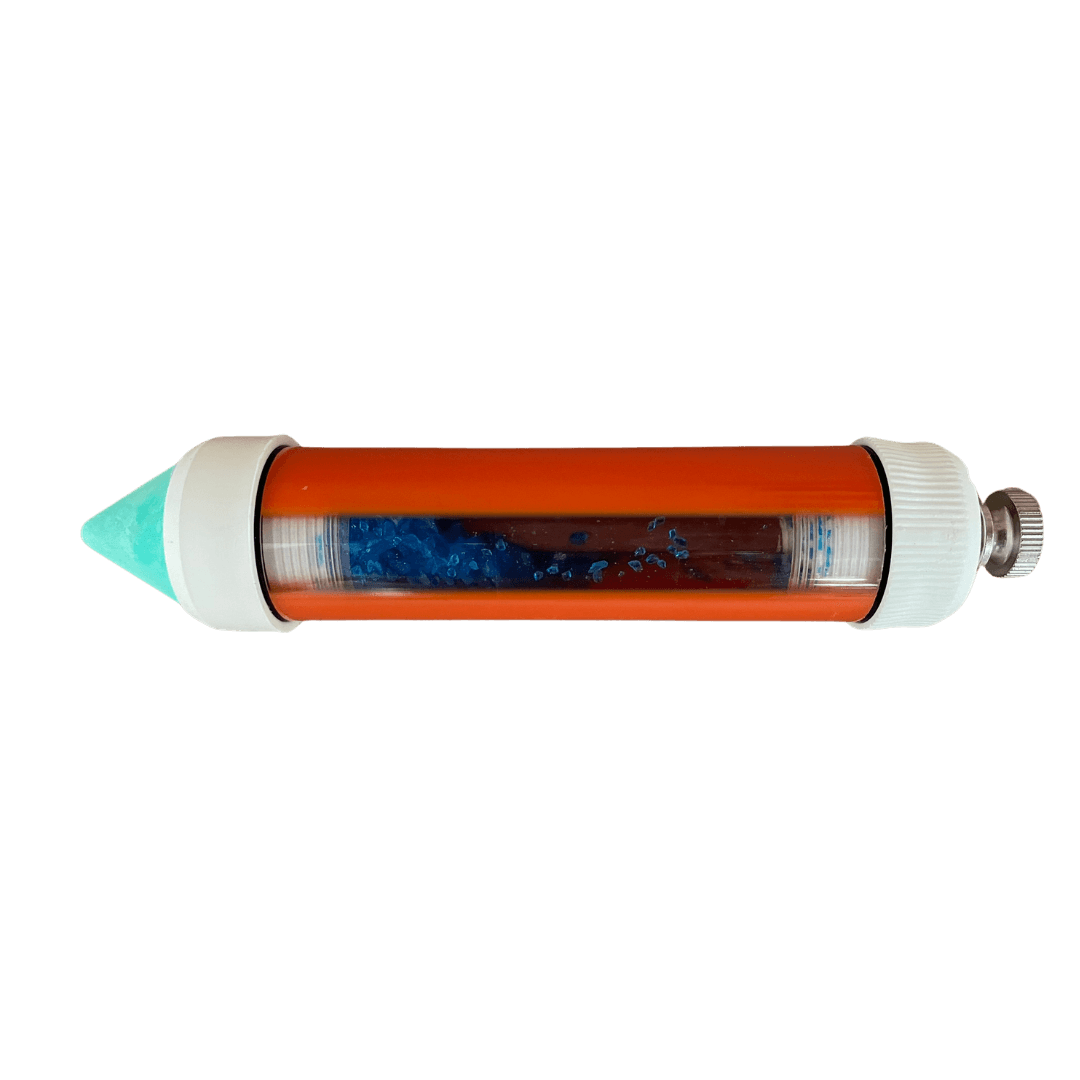

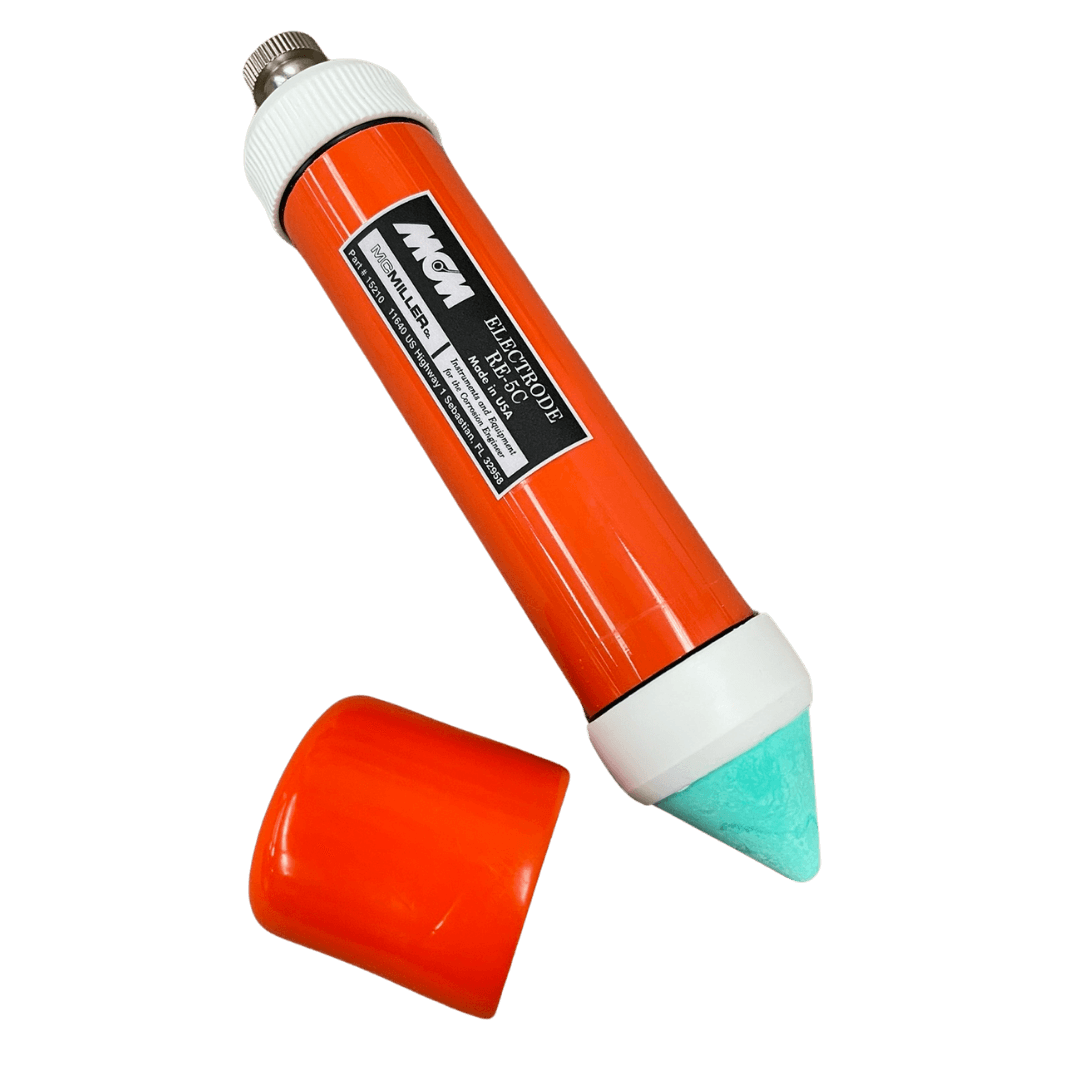

It uses a high-purity copper rod, a robust transparent Lexan body and a conical ceramic plug intended for soft soil. The viewing window allows the saturated copper-sulphate solution to be inspected.
The user prepares the saturated solution inside the tube in accordance with the supplied instructions; a charge of copper-sulphate crystals is included.
RE-5C specifications:
- Type: Portable Cu/CuSO₄ reference electrode.
- Dimensions: 17 × 3.5 cm.
- Connection: 1/4″-20 male with thumb nut.
- Application: Cathodic-protection surveys in soft soil.
