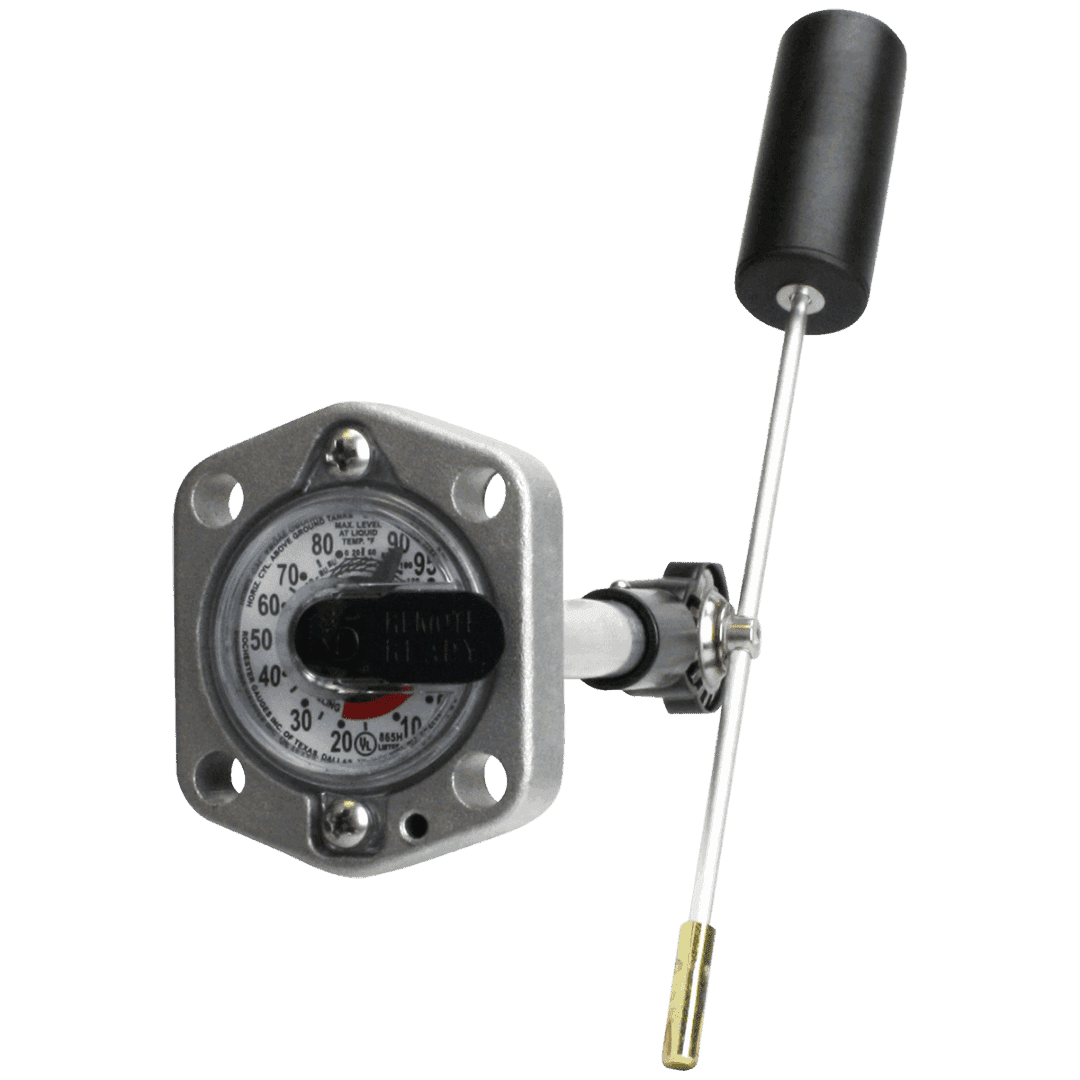

This Rochester level indicator provides accurate and reliable readings and is mounted on top of the tank for easy access and viewing of the fluid level.
Rochester 6281G Features
| Ref. | Internal Diameter of the Tank | Mounting Position | Display | Tank Type |
|---|---|---|---|---|
| 6281DI1000 | 1000 mm | Top | Junior | Stationary |
| 6281DI1200 | 1200 mm | Top | Junior | Stationary |
| 6281DI1500 | 1500 mm | Top | Junior | Stationary |
Application
The 6281 Junior model is a four-bolt level indicator designed for top mounting on ASME vessels, including domestic and above-ground or below-ground storage tanks, for LPG and fuel applications.It allows direct level reading and is prepared for optional integration of a remote module (Hall Effect), depending on the display installed.
For large deposits, please consult the SR Level Indicators (Rochester 6293/6290).
Technical Specifications
- Standard magnet for driving direct reading dials
- Reading as a percentage of the tank level
- Compatible with Remote Ready technology (depending on the dial applied)
General Specifications
Operating temperature:
- −40 °C to +80 °C
Maximum working pressure:
- 375 psi (25.5 bar)
Accuracy:
- Junior dials: ±5% of full scale
- Accuracy may vary depending on tank shape, fill level, liquid temperature, and tank levelling.
Approvals
UL certification for LPG applications
Building Materials
- Head: Die-cast aluminium
- Centre tube, gears and dial screws: Stainless steel
- Float: Nitrile rubber or aluminium in one piece
- Gasket: Synthetic Rubber
- Mounting screws: Zinc-plated steel (stainless steel optional)
Important note: This indicator does not replace an automatic overfill prevention device.
