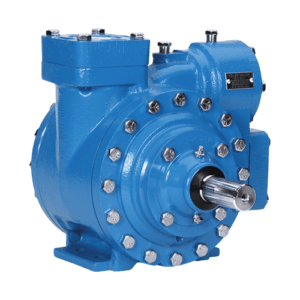

The Blackmer LGLD3 is a sliding vane positive-displacement pump designed for liquefied-gas transfer at bulk plants, terminals, vaporisers and tank trucks.
Its sliding vanes automatically compensate for wear, helping maintain flow and efficiency throughout the pump’s service life. The cavitation-suppression liner reduces noise, vibration and wear caused by vapour formation.
The pump has ductile-iron construction, Buna-N elastomers and an internal relief valve for protection against excessive pressure. In the 90° configuration, the inlet is on the side and the outlet is on the top.
Blackmer LGLD3 specifications:
- Type: Sliding vane positive-displacement pump.
- Nominal size: 3″.
- Flow rate: 227 to 761 LPM.
- Configuration: Side inlet and top outlet at 90°.
- Fluids: LPG, butane and anhydrous ammonia.
- Elastomers: Buna-N.
- Maximum working pressure: 24.1 bar.
- Construction: Ductile iron.
- Application: Transfer at bulk plants and on tank trucks.
- Brand: Blackmer.
